In the PET packaging industry, volume matters. When you are producing millions of bottles per day, every second of cycle time counts, every gram of material matters, and every cavity in your mold contributes directly to your bottom line. High cavitation preform molds — typically 96, 144, or more cavities — are the tools that make high-volume production possible.

But not all high cavitation molds perform equally. A poorly designed high cavitation mold amplifies problems: weight variation spreads across more cavities, cooling imbalances create quality issues, and maintenance demands multiply. A well-designed high cavitation mold, on the other hand, delivers consistent quality, fast cycles, and reliable operation — day after day, million after million.

At LEIZHEN, we specialize in high cavitation preform molds. We engineer them for balance. We build them for precision. We support them for longevity.

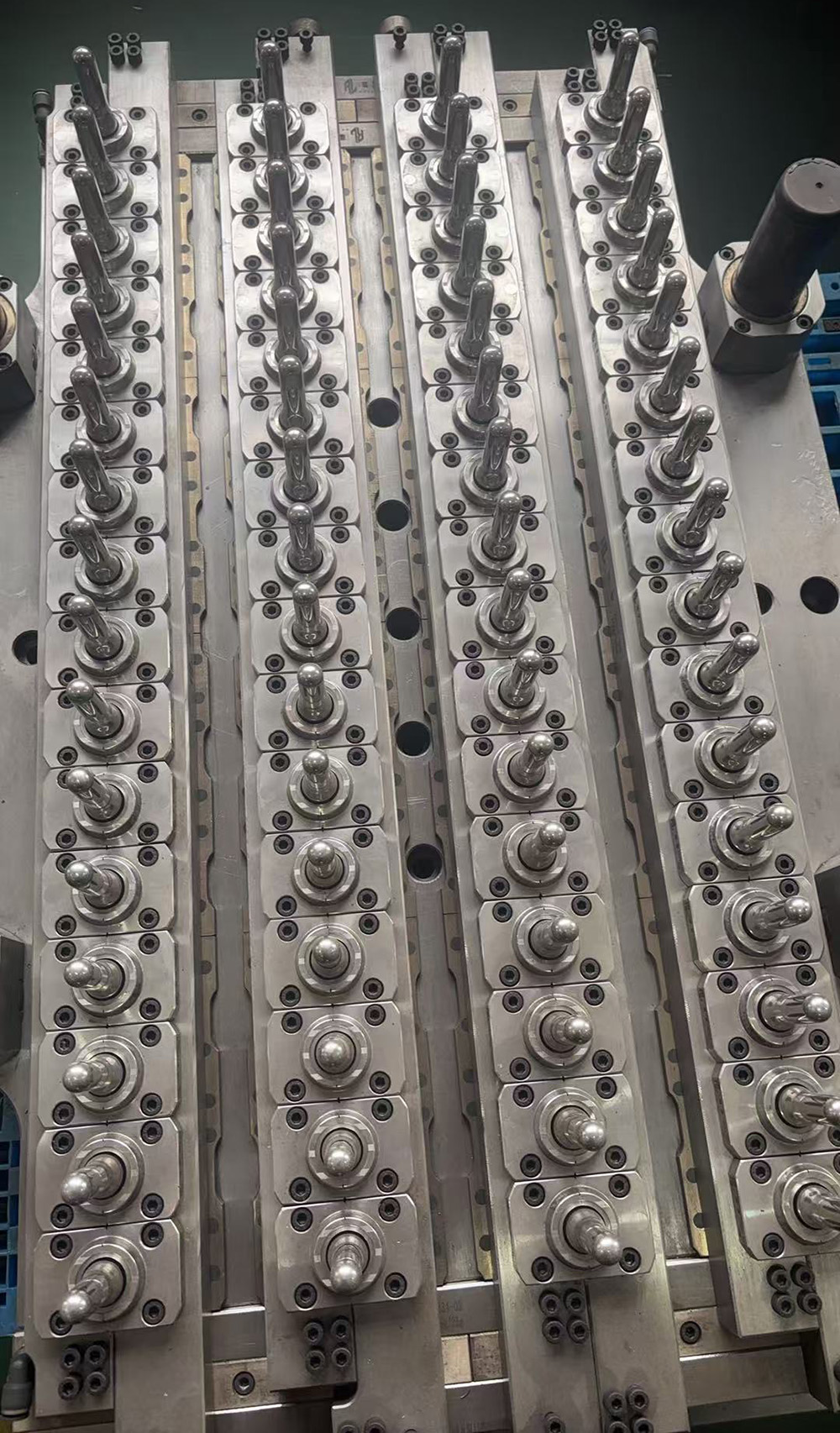

What Is a High Cavitation Preform Mold?

Cavitation refers to the number of preforms a mold produces per injection cycle. A 32-cavity mold produces 32 preforms per cycle. A 96-cavity mold produces 96 preforms per cycle. A 144-cavity mold produces 144 preforms per cycle.

High cavitation molds typically start at 96 cavities and go up to 144, 192, or more. They are used for high-volume applications where output per hour is the primary driver of production economics.

Typical high cavitation applications:

• Water bottles (lightweight, high volume)

• Carbonated soft drinks (high output, consistent quality)

• Large-scale beverage production

• Converters serving multiple brand customers

SEO keywords for high cavitation definition:
high cavitation preform mold, 96 cavity preform mold, 144 cavity preform tooling, high output PET mold, high volume preform mold, LEIZHEN high cavitation

The Engineering Challenge of High Cavitation

Adding cavities to a mold does not simply mean making it larger. Cavity count increases introduce engineering challenges that must be solved for the mold to perform reliably.

Melt flow balance:
With more cavities, the distance melt travels from the sprue to the farthest cavity increases. Maintaining equal fill pressure and temperature across 96 or 144 cavities requires sophisticated runner and gate design. Imbalance leads to weight variation — some cavities produce heavy preforms, others light preforms.

Cooling uniformity:
More cavities generate more heat. Cooling circuits must remove that heat uniformly across the entire mold plate. Hot spots create preform quality issues (cloudiness, crystallization, dimensional variation). Uneven cooling also extends cycle times.

Plate rigidity:
High cavitation molds are larger and heavier. Injection pressures create significant forces that can deflect plates, causing misalignment, premature wear, and preform quality problems. Plates must be thick enough and properly supported.

Maintenance access:
With more cavities, maintenance becomes more complex. Thread splits, ejector sleeves, and other wear components must be accessible for inspection and replacement without complete mold disassembly.

Cavity-to-cavity consistency:
Every cavity in a high cavitation mold must produce identical preforms. A single cavity that is off-dimension or has poor surface finish creates quality problems that are difficult to isolate.

LEIZHEN designs high cavitation molds with these challenges fully addressed.

SEO keywords for engineering challenges:
high cavitation mold design, melt flow balance, cooling uniformity, plate rigidity, cavity-to-cavity consistency, LEIZHEN engineering solutions

LEIZHEN High Cavitation Mold Features

LEIZHEN high cavitation preform molds incorporate specific design features and manufacturing capabilities that ensure reliable performance.

Balanced runner systems:

• Symmetrical runner layouts for equal flow distances

• Computer-optimized runner diameters for pressure balance

• Consistent gate dimensions across all cavities

• Hot runner integration with individual nozzle control

Uniform cooling design:

• Spiraled cooling channels around cores and cavities

• Balanced circuit lengths for equal flow rates

• Turbulent flow promotion for heat transfer efficiency

• Corrosion-resistant cooling passage treatment

Rigid plate construction:

• Stress-relieved steel plates to prevent warpage

• Sufficient plate thickness for injection pressure resistance

• Precision-ground parallel surfaces

• Robust guide pillar and bushing placement

High-precision component manufacturing:

• CNC machining with cavity-to-cavity identical tolerances

• Interchangeable core and cavity sets

• Precision-ground thread splits for smooth operation

• CMM verification of all critical dimensions

Serviceable design:

• Accessible thread split replacement

• Modular component design

• Clear maintenance documentation

• Spare parts availability from original specifications

SEO keywords for mold features:
balanced runner system, uniform cooling design, rigid plate construction, interchangeable mold components, serviceable preform mold, LEIZHEN mold features

Cavity Configurations Available from LEIZHEN

LEIZHEN offers high cavitation preform molds in multiple configurations to match your production requirements and machine specifications.

96-Cavity Preform Mold

• Ideal for medium-to-high volume production

• Compatible with many standard PET injection machines

• Balanced cooling and fill for consistent quality

• Suitable for water and general beverage

144-Cavity Preform Mold

• High-volume production solution

• Optimized for dedicated high-output PET lines

• Advanced cooling circuit design

• Common for large-scale water bottle production

192-Cavity and Higher

• Maximum output for industrial-scale production

• Custom engineered for specific machine platens

• Specialized cooling and runner systems

• For customers with highest volume requirements

Custom Cavity Layouts

• Tailored to your machine platen size and tie bar spacing

• Optimized for your specific preform geometry

• Engineer to your production floor constraints

LEIZHEN works with you to determine the right cavity count for your volume targets and machine capabilities.

SEO keywords for cavity configurations:
96 cavity preform mold, 144 cavity preform mold, 192 cavity PET mold, high cavitation mold types, custom cavity layout, LEIZHEN cavity options

Quality Assurance for High Cavitation Molds

Quality control becomes more critical as cavity count increases. LEIZHEN applies rigorous quality assurance to every high cavitation mold.

Component-level inspection:

• CMM verification of every core and cavity

• Surface finish measurement on all forming surfaces

• Hardness testing for heat-treated components

• Thread split dimensional inspection

Sub-assembly testing:

• Core and cavity fit verification

• Thread split operation check

• Ejector system movement test

• Cooling circuit flow and leak test

Full mold assembly testing:

• Dry cycle operation for all cavities

• Guide pillar and bushing alignment check

• Plate parallelism verification

• Hot runner functionality test

Mold sampling validation:

• Trial on actual PET injection machine

• Cavity-to-cavity weight measurement (all cavities)

• Dimensional inspection of sample preforms

• Visual quality check (gate vestige, cloudiness, defects)

Documentation:

• Complete sampling report with cavity-by-cavity data

• Mold drawings for reference

• Spare parts list with part numbers

• Maintenance manual for long-term care

SEO keywords for quality assurance:
high cavitation quality control, preform mold inspection, cavity-to-cavity weight check, mold sampling validation, LEIZHEN quality assurance

Benefits of LEIZHEN High Cavitation Preform Molds

Choosing LEIZHEN for your high cavitation preform mold delivers specific, measurable benefits.

Higher Output Per Hour

• More preforms per cycle means more production per hour

• Optimized cooling enables faster cycle times

• Reliable operation reduces unplanned downtime

Lower Cost Per Thousand Preforms

• Spread fixed costs across more preforms

• Reduce per-unit energy consumption

• Lower labor cost per thousand units

Consistent Quality Across Cavities

• Balanced fill ensures uniform preform weight

• Uniform cooling produces consistent dimensions

• Quality problems do not multiply across cavities

Less Scrap and Waste

• Tight cavity-to-cavity variation minimizes rejects

• Stable processing reduces startup scrap

• Reliable ejection prevents preform damage

Lower Maintenance Burden

• Robust construction reduces wear frequency

• Accessible design simplifies maintenance tasks

• Spare parts available when needed

Better Return on Investment

• Higher productivity from your injection machine

• Longer mold life spreads capital cost

• Lower operating cost improves margins

SEO keywords for benefits:
higher output per hour, lower cost per preform, consistent cavity quality, less preform scrap, lower maintenance burden, better mold ROI, LEIZHEN mold benefits

Applications for LEIZHEN High Cavitation Molds

High cavitation preform molds are ideal for specific applications where volume is the primary driver.

Water Bottles

• Lightweight preform designs

• 96, 144, or higher cavity counts

• Fast cycle times for maximum output

• PCO neck finishes

Carbonated Soft Drinks

• High volume CSD production

• Pressure-resistant neck finish requirements

• Uniform wall distribution needs

• Stress crack resistance

Beverage (Juice, Dairy, Sports Drinks)

• Large-scale beverage converters

• Multiple brand production

• Consistent quality across high volume

• Various neck finish standards

Large Converters

• Serving multiple bottle customers

• High utilization of injection machines

• Maximum output per square foot

• Standardized preform designs

SEO keywords for applications:
high cavitation water mold, CSD high volume mold, beverage preform high cavitation, large converter preform mold, LEIZHEN application fit

Machine Compatibility for High Cavitation Molds

High cavitation molds require compatible injection molding machines. LEIZHEN designs molds to fit your specific equipment.

Compatible with:

• Husky HyPET and other Husky systems

• Netstal PET lines

• KraussMaffei high-output machines

• Regional and local press brands with sufficient platen size

• Various tie bar spacing configurations

LEIZHEN verifies before building:

• Platen dimensions and tie bar spacing

• Ejection system type and stroke

• Hot runner electrical and hydraulic connections

• Robot and handling interface

No guessing. No modifications on your factory floor. LEIZHEN molds fit when they arrive.

SEO keywords for compatibility:
high cavitation machine fit, Husky high cavitation mold, Netstal preform tooling, KraussMaffei PET mold, LEIZHEN machine compatibility

High Cavitation vs. Multi-Mold Strategies

Some producers choose to run multiple lower-cavitation molds instead of one high-cavitation mold. Each approach has trade-offs.

For customers with high volume and available machine platen size, a single high cavitation mold is often the most efficient solution.

SEO keywords for strategy comparison:
high cavitation vs multi-mold, single mold high output, preform production strategy, LEIZHEN efficiency comparison

Technical Support for High Cavitation Molds

High cavitation molds benefit from expert technical support. LEIZHEN provides:

Installation assistance:

• Guidance for mounting large molds

• Hot runner connection support

• Cooling water setup verification

• First shot and stabilization help

Process optimization:

• Temperature profile recommendations

• Injection parameter guidance

• Cooling time optimization

• Ejection setting advice

Troubleshooting:

• Weight variation diagnosis

• Cooling issue identification

• Thread split operation problems

• Preform release difficulties

Spare parts:

• Thread splits manufactured to original specs

• Ejector sleeves and pins

• Guide bushings and wear plates

• Hot runner components

SEO keywords for support:
high cavitation mold support, preform mold troubleshooting, spare parts for high cavitation, LEIZHEN technical support

Why LEIZHEN for High Cavitation Preform Molds

High cavitation molds demand engineering depth, manufacturing precision, and application experience. LEIZHEN delivers all three.

Engineering depth:

• Experienced design team for high cavitation balance

• Mold flow analysis for fill and cooling

• Plate strength and deflection calculation

• Hot runner integration expertise

Manufacturing precision:

• Advanced CNC equipment for identical cavities

• CMM verification for all components

• Surface finish control for consistent release

• Heat treatment for wear resistance

Application experience:

• Hundreds of high cavitation molds delivered

• Water, CSD, beverage application knowledge

• Global customer base across industries

• Proven performance in high-volume production
