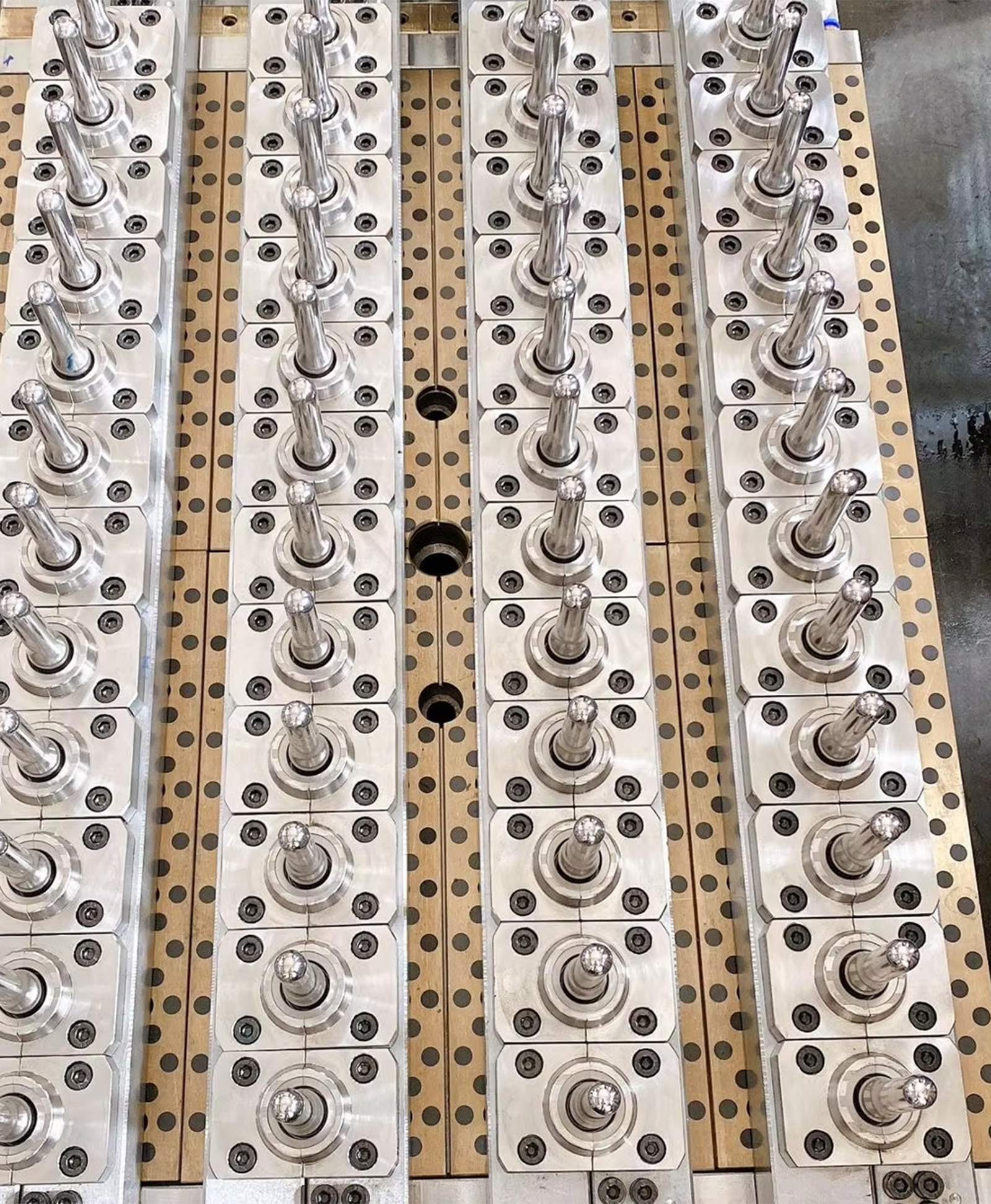

Customized Small Neck 48 Cavity PET Preform Mold

48 Cavity Hot Runner Self Lock Pin Valve Gate PP Preform PET Plastic Injection Jar Water Oil Bottle Preform Mould

1，48 cavity pin valve gate preform mould, no PET waste

2，Independent self-lock system

3，OEM ODM available

4，13 month warranty time

Product Name	48 cavity PET preform mould
Cavity/Core/Screw Material	S136
Mould Plate	P20
Mould Warranty Period	3 million shots
Type	Pin valve gate hot runner
Tail	No
Dimension	1065580525mm (22g preform length 94mm)
Weight	2930kg

48 Cavity Water Factory Bottle Producing PET Preform Heavy Injection Weight 2300g Electric Plastic Injection Molding Machine 48 cavity preform mould for the preform with 30/25 neck, is designed for the water drinks, the mold has balanced hot runner system with shut off valve gate, ensure there is no any stringing form on the injection gate of the performs. The cam roller design help the operator save the maintenance time of the molds. The PET preform mold is designed for MEGA’s injection molding system. The weight of the preforms is 16g, Cycle time is 22 Sec with general PET screw injection molding machine.

Cavity Number	22g Preform Length:94mm		32g Preform Length:120mm		42g Preform Length:130mm
Cavity Number	Dimension (mm)	Weight (kg)	Dimension (mm)	Weight (kg)	Dimension (mm)	Weight (kg)
4(1*4)	500290430	550	500290445	600	500290455	680
6(2*3)	430370400	760	430370415	850	430370425	900
8(2*4)	490370435	810	490370450	900	490370460	970
12(2*6)	630370435	1020	630370450	1100	630370460	1180
16(2*8)	750370480	1240	750370495	1350	750370505	1450
24(3*8)	830440500	1880	830440515	1950	830440525	2060
32(4*8)	830580515	2360	830580530	2550	830580545	2600
48(4*12)	1065580525	2930	1065580540	3050	1065580555	3150
72(6*12)	1140830560	4320	1140830575	4450	1140830580	4600

Leizhen’s Advantages in the Preform Mold Process: Precision, Innovation, and Reliability

In the competitive world of PET preform mold manufacturing, Leizhen has emerged as a trusted partner for brands and bottlers worldwide. Renowned for its engineering expertise, cutting-edge technology, and customer-centric approach, Leizhen delivers molds that optimize production efficiency, quality, and cost-effectiveness. Here’s an in-depth look at the advantages that set Leizhen apart in the preform mold industry:

Professional PET preform mold manufacturer | Helping efficient production and achieving perfect bottle shape

As an industry-leading PET preform mold manufacturer, we focus on providing high-precision, long-life, customized preform mold solutions for global beverage, food, daily chemical and pharmaceutical companies. From design to mass production, we use innovative technology and excellent quality to help you achieve a double breakthrough in production efficiency and product quality!

(Mold Cav Qty)	Neck Size）	Application
18 cav	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
24 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical, products, edible oil, medicine
32 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
48 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
56 cav	48mm, 38mm, 30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
72 cav	38mm, 30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, medicine
96 cav	38mm, 30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, medicine
112 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
128 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
144 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
176 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine

Randomised words which don’t look even slightly Leizhen specializes in designing and manufacturing high-cavitation molds (including 48-cavity, 72-cavity, and even 144-cavity systems) that meet the demands of mass production. Their molds are engineered to ensure:

Uniform Preform Quality: Advanced flow simulation software balances the runner system, guaranteeing consistent filling and wall thickness across all cavities.

Tight Tolerances: Precision machining (±0.005mm) ensures compliance with international standards (e.g., PCO 1881, BPF) for neck finishes and thread designs.

Durability: Molds are crafted from premium steel (H13, S136, or 420 stainless steel) with heat treatment (HRC 48–52) to withstand millions of cycles.

Leizhen integrates state-of-the-art technologies to enhance mold performance:

Conformal Cooling Channels: 3D-printed or machined cooling channels follow the contour of the preform, reducing cycle times by up to 30% and minimizing warpage.

Hot Runner Systems: Partnerships with top brands like Yudo or INCOE ensure leak-free, energy-efficient melt delivery. Valve-gated systems enable clean gate cuts for lightweight preforms.

High-Speed Compatibility: Molds are optimized for machines with clamping forces up to 1,500 tons, achieving cycle times as low as 8–12 seconds for 20g preforms.

Leizhen tailors molds to meet specific client needs, including:

In-House Testing: Every mold undergoes trial runs on injection molding machines to validate cycle times, cooling efficiency, and preform dimensions.

ISO Certification: Compliance with ISO 9001 standards ensures traceability and accountability at every production stage.

Third-Party Inspections: Collaborations with global certification bodies verify compliance with FDA, EU, and other regional regulations for food-grade PET.

Leizhen’s commitment to quality is reflected in its stringent QC processes:

While European and North American manufacturers often come with premium price tags, Leizhen strikes a balance between affordability and performance:

Competitive Pricing: Direct manufacturing in China reduces overhead costs, offering savings of 20–40% compared to Western suppliers.

Long Mold Lifespan: Durable materials and coatings (e.g., nitriding, DLC) extend mold life to 3+ million shots, lowering cost-per-preform.

Related products

View Details

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2. Quotation Making	Mould Quotation will be finished in 1 day according to the information we get.
3. Negotiation	The quality, price, material, delivery time, payment item, etc.
4. Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5. Mould	1. confirm the products and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device processes
	8. Assemble mold
6. Mould Testing	When moulds are finished, we will test the mould and we will send samples to client.
7. Sample confirmation	If the first sample is not satisfied by the customer when it is come out. We modify the mould until meet the customer’s satisfaction.
8. Delivery	Delivery goods by sea or by air, according to customer’s requirement.
