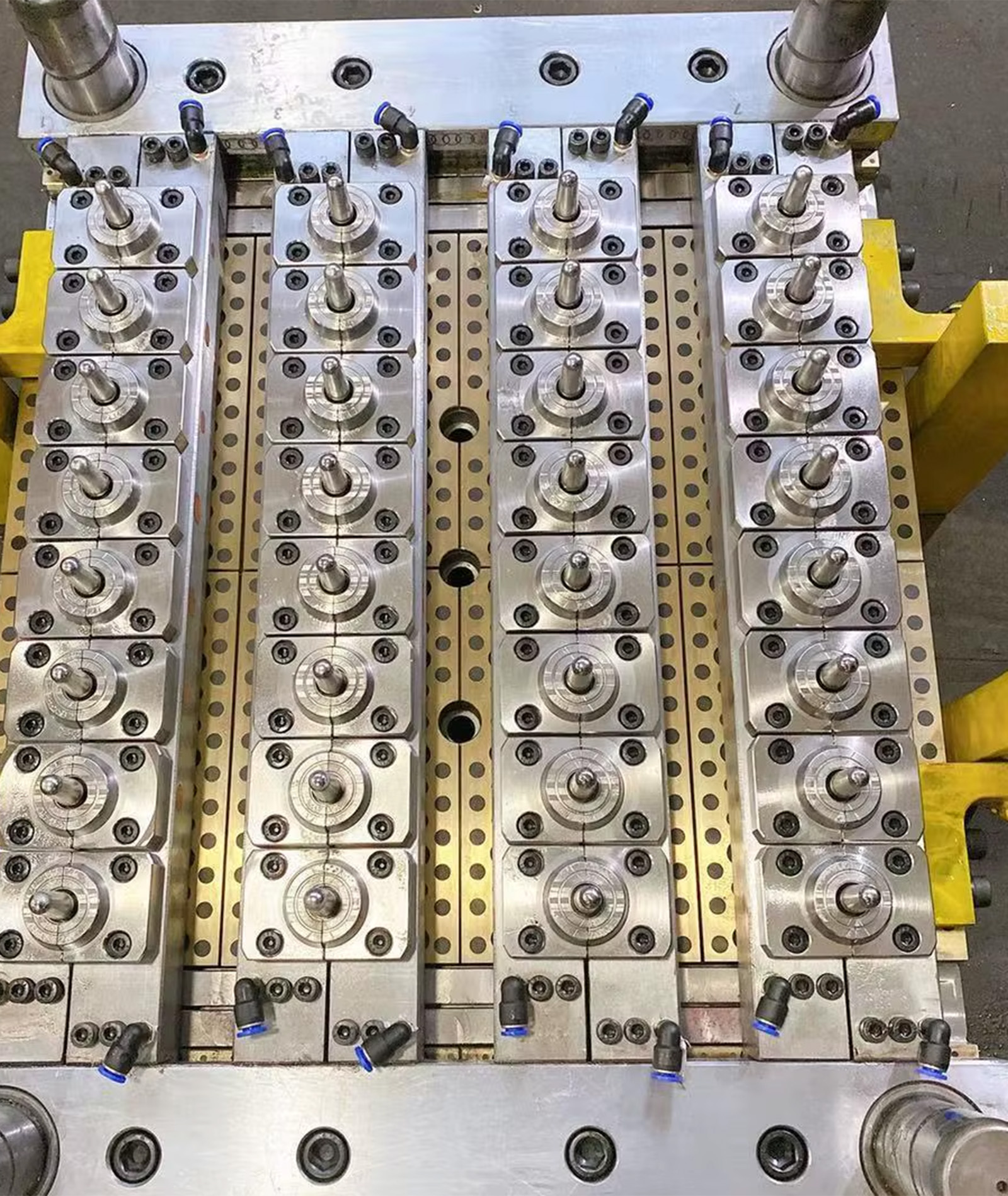

32 Cavity 30/25 38mm Neck PET Bottle Preform Mould

Take 500/550ml, 12.8g-16g gram weight, and 32-cavity preform mold for example, the output capacity of our EFFIENT series injection molding machine is about 20% higher than that of competing products of the same model in the market. The output of preforms is about 700 kg more per day, and the output of preforms per month is about 21 tons. Calculated at a profit of US$80/ton for PET preforms, each month you can have US$1.615 more profit with Dawson Solution.

The mould is made of high quality steel; the hot runner adopts needle valve balance type plastic feeding; the product has
beautiful appearance and very small size error and very high qualification ratio.
The company has needle valve type and non-needle valve type products available for customers selection.

PET Preform Mould Specification
Mould name	48 cavity preform mould for 30/25 Neck 16g Preform
Mould cavity	48 cavity
Neck finish	30/25 Neck finish
Preform weight	16 g
Insert materials	2316 stain steel from German
Mould body	#50 steel material
Cycle time	22 sec with general PET screw type of injection molding machine
Cycle time with two stage injection system and Post cooling system	11 sec with 3 stage post cooling system
Hot runner design	Balanced Hot runner with valve gate system
Suitable injection molding machines	Husky, Netstal PET line, PET Master, General PET injection molding machine

Leizhen 32 cavity PCO1810 PCO1881 neck size 28mm Plastic PET heat resistant bottle Preform Mold
instructions
1: The number of preform cavity from 1 to 96.
2: The bottle preform is designed by computer simulation tensile test to improve the finished product rate of the blown bottle.
3: Adopt the world advanced two-level double-taper positioning technology, each cavity is self-locked independently, to ensure the concentricity of the mold.
4: Mold injection cavity and injection core are made of high quality preheating special die steel from the original Factory in Sweden.
5: Thread mouth according to international standard manufacturing, the material selection of imported nitriding, high hardness, long service life.
6: Advanced design of hot runner, uniform heating temperature, improve the quality of plastic products.
7: no shear gate, reduce the labor intensity of workers.
8: Mold life is guaranteed to be more than 3 million mold times.

Leizhen’s Advantages in the Preform Mold Process: Precision, Innovation, and Reliability

In the competitive world of PET preform mold manufacturing, Leizhen has emerged as a trusted partner for brands and bottlers worldwide. Renowned for its engineering expertise, cutting-edge technology, and customer-centric approach, Leizhen delivers molds that optimize production efficiency, quality, and cost-effectiveness. Here’s an in-depth look at the advantages that set Leizhen apart in the preform mold industry:

Professional PET preform mold manufacturer | Helping efficient production and achieving perfect bottle shape

As an industry-leading PET preform mold manufacturer, we focus on providing high-precision, long-life, customized preform mold solutions for global beverage, food, daily chemical and pharmaceutical companies. From design to mass production, we use innovative technology and excellent quality to help you achieve a double breakthrough in production efficiency and product quality!

(Mold Cav Qty)	Neck Size）	Application
18 cav	48mm, 38mm,30/25,20/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
24 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical, products, edible oil, medicine
32 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
48 cav	48mm,38mm,30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
56 cav	48mm, 38mm, 30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
72 cav	38mm, 30/25,29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, medicine
96 cav	38mm, 30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, medicine
112 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
128 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
144 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine
176 cav	30/25, 29/25, PCO1881, PCO1810	Water, Juice, CSD, Daily chemical products, edible oil, medicine

Randomised words which don’t look even slightly Leizhen specializes in designing and manufacturing high-cavitation molds (including 48-cavity, 72-cavity, and even 144-cavity systems) that meet the demands of mass production. Their molds are engineered to ensure:

Uniform Preform Quality: Advanced flow simulation software balances the runner system, guaranteeing consistent filling and wall thickness across all cavities.

Tight Tolerances: Precision machining (±0.005mm) ensures compliance with international standards (e.g., PCO 1881, BPF) for neck finishes and thread designs.

Durability: Molds are crafted from premium steel (H13, S136, or 420 stainless steel) with heat treatment (HRC 48–52) to withstand millions of cycles.

Leizhen integrates state-of-the-art technologies to enhance mold performance:

Conformal Cooling Channels: 3D-printed or machined cooling channels follow the contour of the preform, reducing cycle times by up to 30% and minimizing warpage.

Hot Runner Systems: Partnerships with top brands like Yudo or INCOE ensure leak-free, energy-efficient melt delivery. Valve-gated systems enable clean gate cuts for lightweight preforms.

High-Speed Compatibility: Molds are optimized for machines with clamping forces up to 1,500 tons, achieving cycle times as low as 8–12 seconds for 20g preforms.

Leizhen tailors molds to meet specific client needs, including:

In-House Testing: Every mold undergoes trial runs on injection molding machines to validate cycle times, cooling efficiency, and preform dimensions.

ISO Certification: Compliance with ISO 9001 standards ensures traceability and accountability at every production stage.

Third-Party Inspections: Collaborations with global certification bodies verify compliance with FDA, EU, and other regional regulations for food-grade PET.

Leizhen’s commitment to quality is reflected in its stringent QC processes:

While European and North American manufacturers often come with premium price tags, Leizhen strikes a balance between affordability and performance:

Competitive Pricing: Direct manufacturing in China reduces overhead costs, offering savings of 20–40% compared to Western suppliers.

Long Mold Lifespan: Durable materials and coatings (e.g., nitriding, DLC) extend mold life to 3+ million shots, lowering cost-per-preform.

Related products

View Details

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2. Quotation Making	Mould Quotation will be finished in 1 day according to the information we get.
3. Negotiation	The quality, price, material, delivery time, payment item, etc.
4. Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5. Mould	1. confirm the products and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device processes
	8. Assemble mold
6. Mould Testing	When moulds are finished, we will test the mould and we will send samples to client.
7. Sample confirmation	If the first sample is not satisfied by the customer when it is come out. We modify the mould until meet the customer’s satisfaction.
8. Delivery	Delivery goods by sea or by air, according to customer’s requirement.
